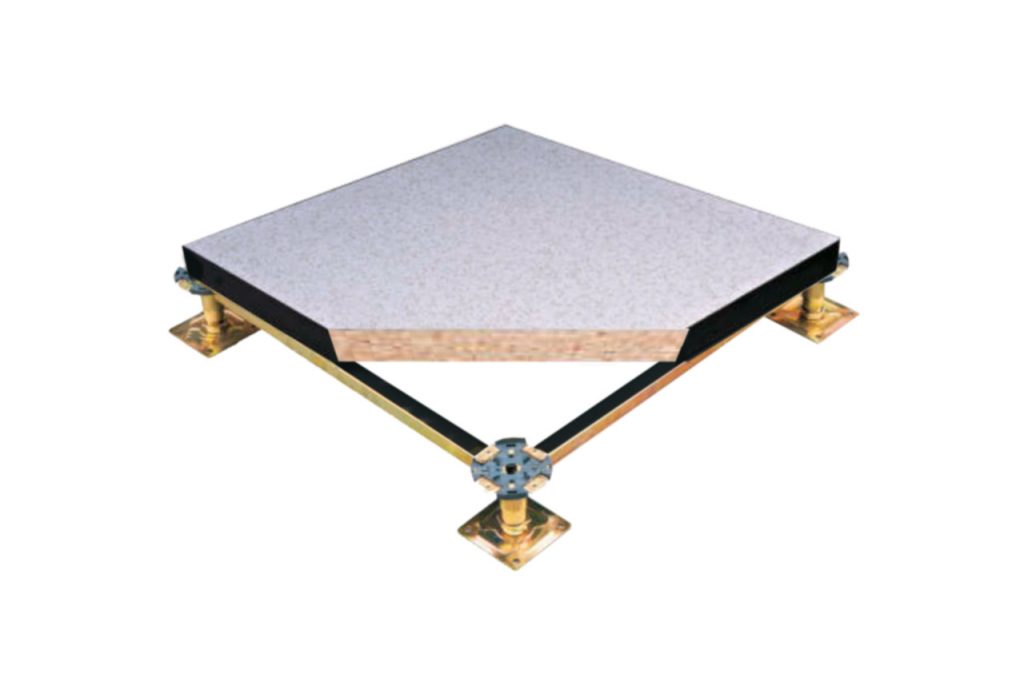

woodcore Panel
PVC SEALED PANEL
STRUCTURE

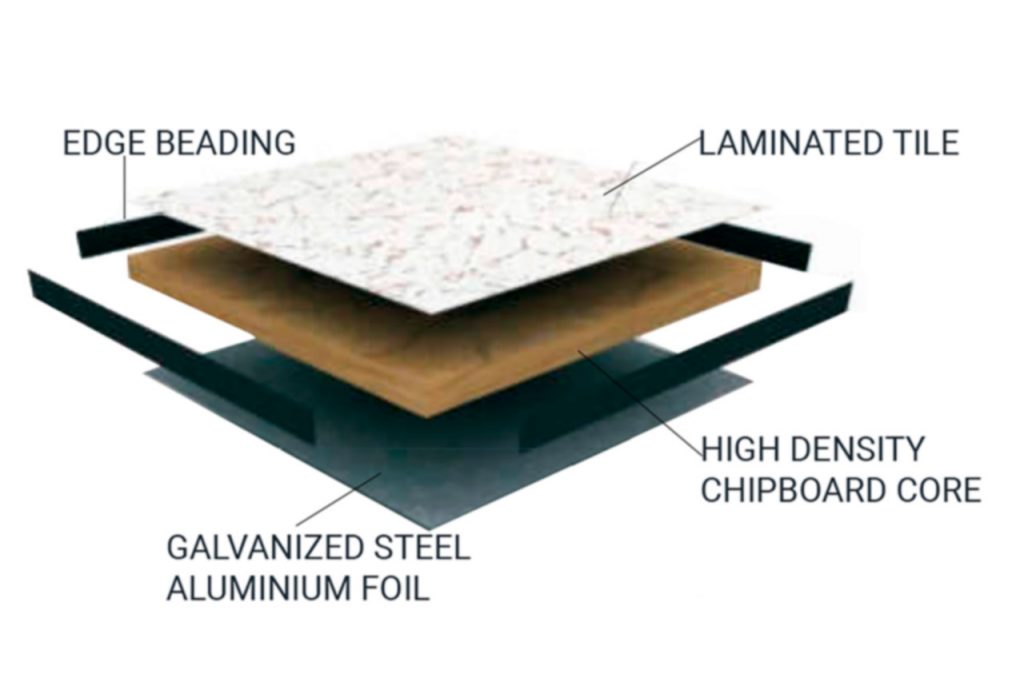

The woodcore access floor consists of high density (720Kg/m3) chipboard.
Galvanized steel sheet/aluminum foil is bonded to the bottom of the tile. HPL or PVC is stuck to the top of the chipboard and all four edges are sealed with an ABS edging strip.
SIZE
600 x 600 x 40mm
600 x 600 x 30mm
FEATURES
- Light weight, small noise when working
- Dimension accuracy with nice inter changeability
- Strong Loading capacity, fire resistance 82 and excellent
anti-static properties - Good sealing and water-proof
ENCAPSULATED PANEL
STRUCTURE

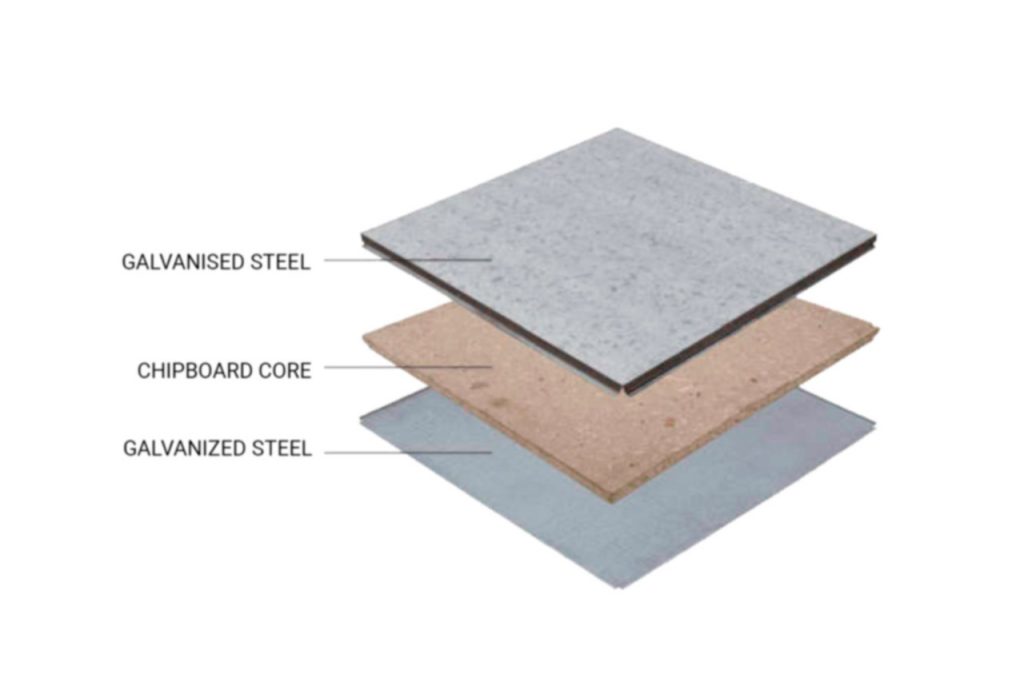

Floor panel is encapsulated to provide full steel Encasement, steel to be high quality galvanized Steel sheet top and bottom. High-density Chipboard as the core.
SIZE
600 x 600 x 30mm
600 x 600 x 25m
APPLICATION
- Woodcore panel is widely used in high-grade rooms such as banks, Telecommunication centers, smart offices and
computer rooms. - This panel is particularly suitable for areas of high humidity.
- High dimension accuracy and environmental proof.
